GS7001B-84是一款高級線性充電管理控制器 SHOUDING

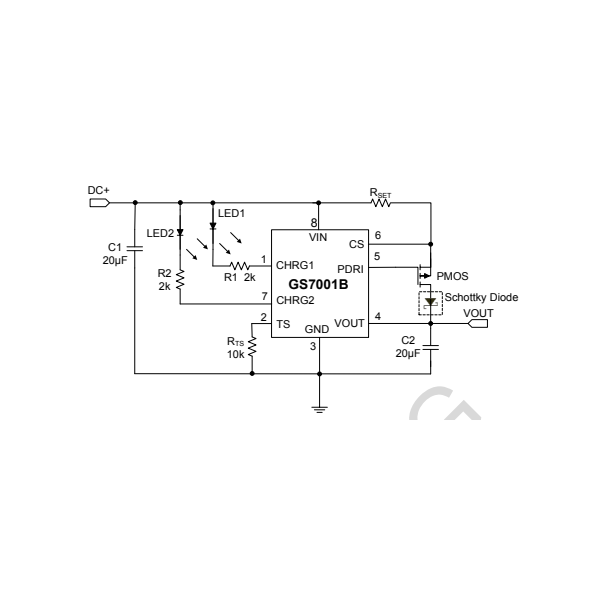

The GS7001Bis a highly advancedcomplete constant-current/ constant voltagelinear charger forcell lithium-ionbatteries.ltspackage and low external component countmake theGS7001Bideally suited forportable applications. The charge current can be

programmed externally with a single resistor,which may be programmed up to 0.9A.

GS7001Bdetermines the charge mode bydetecting the battery voltage:Pre-charge,constant current charging, constant voltagecharging.The charge current of Opre-chargingand constant-current charging is adjustable.The

GS7001Bis monitored by temperaturemonitor during the constant-current andconstant-voltage charging.There are two LEDsindicate the charge mode.

The GS7001B is available in the SOP-8L package.
