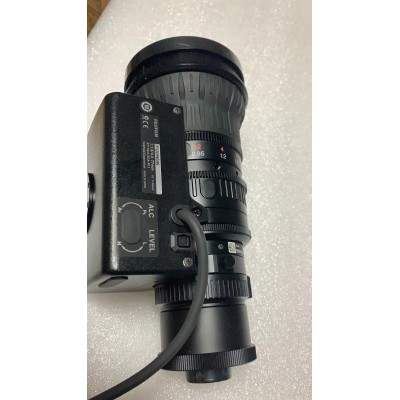

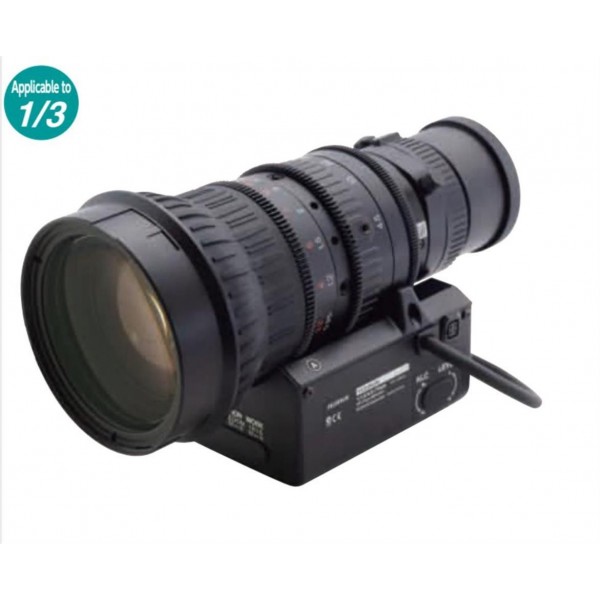

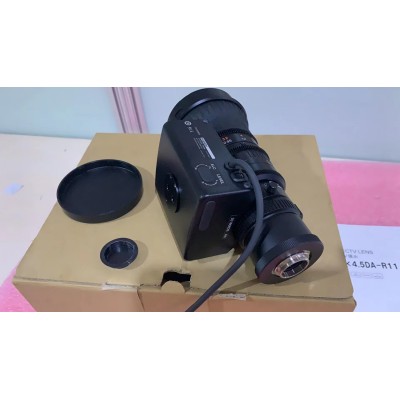

富士能XT17sX4.5DA-R11廣電級高清工業監控鏡頭

NO.

XT17sX4.5DA-R11

Focal Length (mm)

4.5-77mm(17x)

Iris Range

F1.6-F16

Operation

Zoom

 Motor Drive

Focus

Motor Drive

Iris

 Auto(Video Type)or Remote

Angle Of View

(H x V)

1/3”

WIDE:  50°09′X43°36′

4:3

TELE :  3°34′X2°41′

1/4”

WIDE:  43°36′X33°24′

4:3

TELE :  2°41′X2°01′

1/3”

WIDE:  60°19′X36°11′

16:9

TELE :  3°53′X2°11′

1/4”

WIDE:  47°04′X27°36′

16:9

TELE :  2°55′X1°39′

Focusing Range (From Front   Of The Lens) (m)

0.95

ObjectDimensions

at M.O.D.(HxV)(mm)

1/3＂

WIDE:  920X690mm

TELE:   55X41mm

Back Focal Distance(in   air)(mm)

19.95

Exit Pupil Position(From   Image Plane)(mm)

-69

Filter Thread(mm)

M82x0.75mm

Mass (g)

1400

Wiring Diagram

P27
